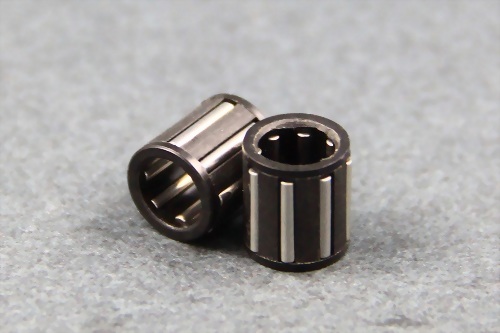

滾針保持架K系列
(Needle roller cage K series)

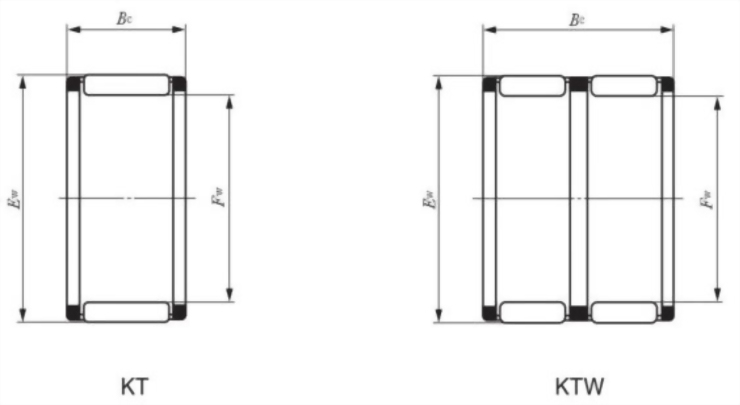

一般用-KT KTW系列圖
連桿用-滾針保持器

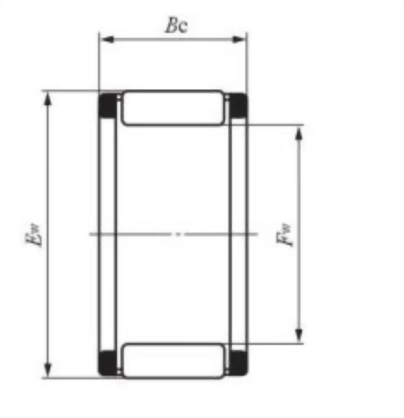

| 用於連桿大端孔滾針保持器軸承 | |||||||
| 軸徑mm | 規格編號 | 質量 g | 主要尺寸mm | 基本動額定負荷C kgf | 基本靜額定負荷Co kgf | ||
| Fw | Ew | Bc | |||||
| 8 | KT8128EG | 2.1 | 8 | 12 | 8 | 330 | 270 |
| 10 | KT101410EG | 3.2 | 10 | 14 | 10 | 500 | 480 |
| 12 | KT121610EG | 3.8 | 12 | 16 | 10 | 580 | 600 |
| KT121710EG | 5.3 | 12 | 17 | 10 | 680 | 650 | |
| 14 | KT14199.7EG | 5.7 | 14 | 19 | 9.7 | 620 | 600 |
| KT141910EG | 5.7 | 14 | 19 | 10 | 680 | 670 | |
| 15 | KT15199EG | 4.2 | 15 | 19 | 9 | 590 | 660 |
| KT152010EG | 6.1 | 15 | 20 | 10 | 720 | 740 | |
| 16 | KT162211.5EG | 9.5 | 16 | 22 | 11.5 | 970 | 980 |
| KT162212EG | 9.7 | 16 | 22 | 12 | 1070 | 1110 | |
| 18 | KT182210EG | 5.7 | 18 | 22 | 10 | 760 | 970 |
| KT182411.6EG | 11 | 18 | 24 | 11.6 | 1090 | 1170 | |
| KT182412EG | 11 | 18 | 24 | 12 | 1200 | 1330 | |
| 20 | KT202612EG | 12 | 20 | 26 | 12 | 1260 | 1460 |
| KT202614EG | 13.8 | 20 | 26 | 14 | 1330 | 1550 | |
| KT202814EG | 20 | 20 | 28 | 14 | 1600 | 1650 | |
| 22 | KT222814EG | 14.9 | 22 | 28 | 14 | 1390 | 1690 |
| KT222816EG | 17.5 | 22 | 28 | 16 | 1600 | 2020 | |
| KT222912EG | 15.2 | 22 | 29 | 12 | 1320 | 1430 | |
| KT223215EG | 30 | 22 | 32 | 15 | 2170 | 2190 | |
| 23 | KT232913EG | 14.9 | 23 | 29 | 13 | 1310 | 1590 |
| 24 | KT243015EG | 17.9 | 24 | 30 | 15 | 1450 | 1830 |
| KT243016EG | 18.2 | 24 | 30 | 16 | 1660 | 2190 | |
| KT243120EG | 28 | 24 | 31 | 20 | 2120 | 2690 | |
| 30 | KT303818EG | 35.5 | 30 | 38 | 18 | 2540 | 3320 |
| 32 | KT324220EG | 54 | 32 | 42 | 20 | 3250 | 4020 |
| 軸徑mm | 規格編號 | 質量 g | 主要尺寸mm | 基本動額定負荷C kgf | 基本靜額定負荷Co kgf | ||
| Fw | Ew | Bc | |||||
| 18 | KTZ182415EGS | 16.3 | 18 | 24 | 15 | 1600 | 1940 |
| 22 | KTZ222816EGS | 20.1 | 22 | 28 | 16 | 1930 | 2600 |
| KTZ222917EGS | 21.5 | 22 | 29 | 17 | 2230 | 2840 | |
| 24 | KTZ243020EGS | 27.5 | 24 | 30 | 20 | 2360 | 3450 |
| KTZ243116EGS | 26 | 24 | 31 | 16 | 2180 | 2820 | |
| KTZ243118EGS | 28.6 | 24 | 31 | 18 | 2450 | 3290 | |
| 25 | KTZ253220EGS | 32.6 | 25 | 32 | 20 | 2580 | 3540 |
| 26 | KTZ263116EGS | 18.9 | 26 | 31 | 16 | 1770 | 2770 |
| 27 | KTZ273515EGS | 32 | 27 | 35 | 15 | 2170 | 2660 |

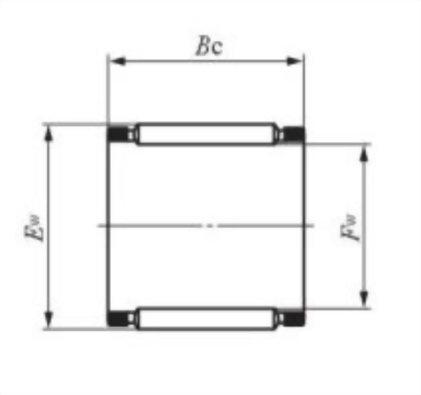

| 用於連桿小端孔滾針保持器軸承 | |||||||
| 軸徑mm | 規格編號 | 質量 g | 主要尺寸mm | 基本動額定負荷C kgf | 基本靜額定負荷Co kgf | ||
| Fw | Ew | Bc | |||||
| 9 | KTV91211.5EG | 2.8 | 9 | 12 | 11.5 | 400 | 420 |
| KTV91214EG | 3.5 | 9 | 12 | 14 | 450 | 490 | |
| 10 | KTV101316EG | 4.5 | 10 | 13 | 16 | 450 | 500 |
| KTV101410EG | 3.8 | 10 | 14 | 10 | 460 | 430 | |
| KTV101411EG | 4.1 | 10 | 14 | 11 | 520 | 500 | |
| KTV101412.5EG | 4.8 | 10 | 14 | 12.5 | 570 | 570 | |
| 10.5 | KTV10.51415EG | 5.1 | 10.5 | 14 | 15 | 580 | 640 |
| 12 | KTV121514.3EG | 4.3 | 12 | 15 | 14.3 | 600 | 750 |
| KTV121613EG | 5.6 | 12 | 16 | 13 | 720 | 800 | |
| KTV121615.5EG | 6.8 | 12 | 16 | 15.5 | 770 | 880 | |
| 14 | KTV141812EG | 6 | 14 | 18 | 12 | 690 | 790 |
| KTV141816.5EG | 8.2 | 14 | 18 | 16.5 | 940 | 1170 | |
| KTV141822EG | 10.8 | 14 | 18 | 22 | 1010 | 1290 | |
| 16 | KTV162019EG | 10.6 | 16 | 20 | 19 | 1100 | 1490 |
| KTV162022EG | 12.7 | 16 | 20 | 22 | 1160 | 1600 | |
| 18 | KTV182223.5EG | 14.9 | 18 | 22 | 23.5 | 1330 | 1970 |
| KTV182321 | 16.4 | 18 | 23 | 21 | 1470 | 1920 | |
